Most Prominent Supplier & Manufacturer of Copper Compression Lugs – N- Series in Mumbai, India.
compression cable Lugs
Manufacturer, Supplier & Dealer of Copper Compression Lugs – N- Series in India.
Sunflex Metal Industries is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Lugs – N- Series. We are one of the renowned manufacturers, exporter and supplier of Copper Compression Lugs – N- Series that are designed as per the need of various several small- and large-scale industries.
These tinned copper cable terminal ends (lugs) are manufactured with E-Copper with Electro Tinned with or wothout inspection holes under the supervision of skilled engineers and quality tests. These Copper Lugs are used for interconnecting heavy gauge power, cables to bus bars, relays, batteries, solar power inverters, power cables, grounding devices and much more. Our Copper Compression Cable Lugs – N-Series can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.
Our high-quality Copper Compression Lugs – N- Series are well recognized by our worldwide customers. If you looking to buy these Copper Compression Lugs – N- Series. Contact Us today for the best prices of Compression Cable Lugs – N- Series.
Quick Section Links
- Our Range of Compression Cable Lugs N- Series
- Compression Cable Lugs N- Series
- Compression Cable Lugs N- Series Specification
- Types of Compression Cable Lugs N- Series
- Compression Cable Lugs N- Series Applications
- Compression Cable Lugs Stock Availability
- Compression Cable Lugs Prices as of today
- Request a Compression Cable Lugs Catalogue
- Prominent Countries where we Export Compression Cable Lugs

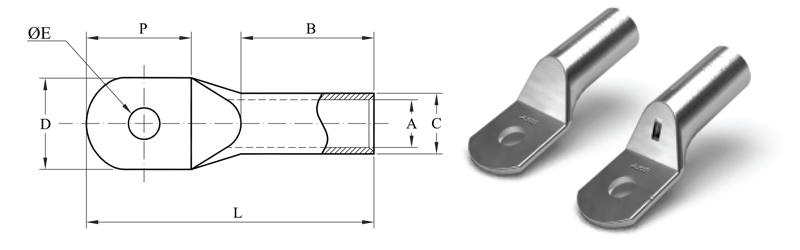

Compression Cable Lugs weight & Dimensions Chart
| CABLE mm2 | Ø E | DIM IN mm (A) | DIM IN mm (C) | DIM IN mm (D) | DIM IN mm (P) | DIM IN mm (B) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|---|---|---|---|
| 6 | 5.2 | 3.8 | 5.5 | 10 | 14 | 9 | 28 | 1000 |
| 6.2 | ||||||||
| 10 | 5.2 | 4.5 | 6.21 | 11 | 15 | 9 | 28 | 1000 |
| 6.2 | ||||||||
| 8.2 | 16 | 25 | 12 | 43 | ||||
| 10.5 | ||||||||
| 16 | 6.2 | 5.5 | 7 | 12 | 16 | 12 | 36 | 500 |
| 8.2 | ||||||||
| 10.5 | 16 | 24 | 12 | 43 | ||||
| 13 | ||||||||
| 25 | 6.2 | 6.8 | 8.8 | 13 | 16 | 12 | 37 | 300 |
| 8.2 | ||||||||
| 10.5 | 16 | 25 | ||||||
| 13 | 18 | 43 | ||||||
| 35 | 6.2 | 8.3 | 10.6 | 15 | 20 | 18 | 43 | 200 |
| 8.2 | ||||||||
| 10.5 | ||||||||
| 13 | 17 | 26 | 50 | |||||
| 50 | 6.2 | 9.5 | 12.4 | 18 | 23 | 16 | 49 | 150 |
| 8.2 | ||||||||
| 10.5 | ||||||||
| 13 | ||||||||
| 70 | 8.2 | 11.1 | 14.3 | 21 | 25 | 20 | 55 | 100 |
| 10.5 | ||||||||
| 13 | ||||||||
| 14 | ||||||||
| 95 | 10.5 | 13.5 | 17.4 | 25 | 27 | 23 | 62 | 75 |
| 13 | ||||||||
| 14 | ||||||||
| 17 | 33 | 68 | ||||||
| 120 | 10.5 | 15 | 19.4 | 28 | 28 | 28 | 72 | 50 |
| 13 | ||||||||
| 14 | ||||||||
| 17 | ||||||||
| 21 | 33 | 77 | ||||||
| 150 | 10.5 | 16.5 | 21 | 30 | 32 | 30 | 75 | 40 |
| 13 | ||||||||
| 17 | ||||||||
| 21 | ||||||||
| 185 | 10.5 | 18.5 | 23.5 | 34 | 38 | 31 | 85 | 30 |
| 13 | ||||||||
| 14 | ||||||||
| 17 | ||||||||
| 21 | ||||||||
| 240 | 13 | 21 | 26.5 | 38 | 43 | 35 | 95 | 20 |
| 17 | ||||||||
| 21 | ||||||||
| 300 | 17 | 23.5 | 30 | 43 | 47 | 44 | 110 | 15 |
| 21 | ||||||||
| 400 | 17 | 27.5 | 35.5 | 52 | 48 | 40 | 112 | 10 |
| 21 | ||||||||
| 500 | 17 | 30 | 37 | 55 | 50 | 75 | 148 | 5 |
| 21 | ||||||||
| 630 | 17 | 34.5 | 44 | 60 | 50 | 70 | 148 | 5 |
| 21 |
Compression Cable Lugs- N- Series Applications
Compression Cable Lugs - N- Series Stock Availability
We maintain huge inventories of all standard sizes and grades in various forms. Please send us your complete requirement and we will send you the availability with the best quote for Copper-Nickel Alloy.
Click to send your requirement.
Request a Compression Cable Lugs - N- Series Product Catalogue
Prominent Countries where we export Compression Cable Lugs - Standard Barrel
Exporting Compression Cable Lugs- N- Series to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
