Most Prominent Supplier & Manufacturer of Copper Compression Cable Lugs – DIN 46235 in Mumbai, India.
compression cable Lugs
Manufacturer, Supplier & Dealer of Copper Compression Lugs – DIN 46235 in India.
Sunflex Metal Industries is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Lugs – DIN 46235. We are one of the renowned manufacturers, exporter and supplier of Copper Compression Lugs – DIN 46235 that are designed as per the need of various several small- and large-scale industries.
These tinned copper cable terminal ends (lugs) are manufactured with E-Copper with Electro Tinned with Without inspection hole under the supervision of skilled engineers and quality tests. These Copper Lugs are used for interconnecting heavy gauge power, cables to bus bars, relays, batteries, solar power inverters, power cables, grounding devices and much more. Our Copper Compression Cable Lugs – DIN 46235 can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.
Our high-quality Copper Compression Lugs – DIN 46235 are well recognized by our worldwide customers. If you looking to buy these Copper Compression Lugs – DIN 46235. Contact Us today for the best prices of Copper Compression Cable Lugs – DIN 46235.
Quick Section Links
- Our Range of Compression Cable Lugs DIN 46235
- Compression Cable Lugs DIN 46235
- Compression Cable Lugs DIN 46235 Specification
- Types of Compression Cable Lugs DIN 46235
- Compression Cable Lugs DIN 46235 Applications
- Compression Cable Lugs Stock Availability
- Compression Cable Lugs Prices as of today
- Request a Compression Cable Lugs Catalogue
- Prominent Countries where we Export Compression Cable Lugs

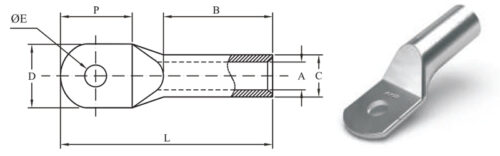

Compression Cable Lugs weight & Dimensions Chart
| CABLE mm2 | Ø E | DIM IN mm (A) | DIM IN mm (C) | DIM IN mm (D) | DIM IN mm (P) | DIM IN mm (B) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|---|---|---|---|
| 10 | 6.4 | 4.5 | 7 | 9 | 16 | 10 | 35 | 400 |
| 8.4 | 13 | 20 | 37 | |||||
| 16 | 6.4 | 5.5 | 8.5 | 13 | 15.5 | 20 | 44 | 150 |
| 8.4 | 20 | 46 | ||||||
| 25 | 6.4 | 7 | 10 | 14 | 15.5 | 20 | 46 | 150 |
| 8.4 | 16 | 20 | 48 | |||||
| 35 | 8.4 | 8.2 | 12.5 | 17 | 20 | 20 | 54 | 100 |
| 10.5 | 19 | 24 | ||||||
| 13 | 21 | 26 | ||||||
| 50 | 8.4 | 10 | 14.5 | 20 | 20 | 28 | 64 | 75 |
| 10.5 | 22 | 24 | ||||||
| 13 | 24 | 26 | ||||||
| 70 | 8.4 | 11.5 | 16.5 | 24 | 20 | 28 | 67 | 50 |
| 10.5 | 24 | |||||||
| 13 | 26 | |||||||
| 95 | 10.5 | 13.5 | 19 | 28 | 24 | 35 | 78 | 50 |
| 13 | 26 | |||||||
| 120 | 10.5 | 15.5 | 21 | 32 | 31 | 35 | 86 | 25 |
| 13 | 33 | |||||||
| 17 | 39 | |||||||
| 150 | 10.5 | 17 | 23.5 | 34 | 31 | 35 | 94 | 25 |
| 13 | 33 | |||||||
| 17 | 39 | 97 | ||||||
| 185 | 10.5 | 19 | 25.5 | 37 | 31 | 40 | 98 | 20 |
| 13 | 33 | |||||||
| 17 | 39 | 101 | ||||||
| 240 | 13 | 21.5 | 29 | 42 | 33 | 40 | 108 | 10 |
| 17 | 39 | 111 | ||||||
| 21 | 43 | 113 | ||||||
| 300 | 17 | 24.5 | 31 | 48 | 40 | 50 | 122 | 10 |
| 21 | ||||||||
| 400 | 17 | 27.5 | 38.5 | 54 | 50 | 70 | 140 | 5 |
| 21 | ||||||||
| 500 | 17 | 31 | 42 | 60 | 50 | 70 | 150 | 5 |
| 21 | ||||||||
| 630 | 17 | 34 | 44 | 62 | 50 | 80 | 160 | 5 |
| 21 | ||||||||
| 800 | 21 | 40 | 52 | 75 | 60 | 100 | 195 | 1 |
| 27 | ||||||||
| 1000 | 21 | 44 | 58 | 85 | 60 | 100 | 195 | 1 |
| 27 |
Compression Cable Lugs- DIN 46235 Applications
Compression Cable Lugs - DIN 46235 Stock Availability
We maintain huge inventories of all standard sizes and grades in various forms. Please send us your complete requirement and we will send you the availability with the best quote for Copper-Nickel Alloy.
Click to send your requirement.
Request a Compression Cable Lugs - DIN 46235 Product Catalogue
Prominent Countries where we export Compression Cable Lugs - DIN 46235
Exporting Compression Cable Lugs- DIN 46235 to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
