Stainless steel


SS 316 / 316L / 316Ti Threaded Forged Fittings

ASTM A182 Stainless Steel 316 Threaded Fitting, SS 316L Threaded Forged Fittings, SS 316Ti Threaded Pipe Elbow, SS 316Ti Forged Threaded 90 Deg. Elbow, Steel 316 Threaded Forged Cap, Steel 316L Threaded Bushing, SS 316L Screwed Fittings Manufacturer & Supplier in Mumbai, India

SS UNS S31600 / S31603 / S31635 Threaded Forged Elbow, Stainless Steel 316L Threaded Forged Fittings, SS 316L Hex Plug, SS Werkstoff NR. 1.4401 / 1.4404 / 1.4571 Threaded Cross, SS 316 Threaded Plug, Stainless Steel 316 Hexagonal Plug, SS 316Ti Full Couplings Exporter

We Sunflex Metal Industry is one of the leading manufacturer, exporter, and supplier of SS 316/316L/316Ti Threaded Forged Fittings over the local and worldwide. Threaded Forged Fittings are one of the jointing techniques used in the piping system. These are high pressure forged fittings which are used in non-critical applications like water fire protection, industrial cooling water system, etc.

We offer SS 316 Forged Threaded Fitting is a chromium-nickel austenitic alloy along with molybdenum content. These are mainly used in the oil and gas industry for natural gas pipelines. These are also used in heating, plumbing and many more. We offer these fittings in various dimensional specifications, lengths, and sizes.

We supply SS 316L Threaded Forged Fittings which minimizes harmful carbide precipitation due to welding.  These are used in the food processing industry, oil & gas industry, pharmaceutical and in many industries. We also offer SS 316Ti Threaded Forged Fittings which are having both molybdenum and titanium stabilized fittings with high carbon content. These are used in the piping equipment in the brewery and petrochemical industry.

Type SS 316 Threaded Forged Union which uses to join pipes or tubes of different dimensions. It allows an easy release at any time and used in low-pressure environments which are used in the chemical industry, water supply systems, etc. Type SS 316 Threaded Forged Hex Plugs are used for stopping the flow. The top of this plug is hexagonal in shape which is used to plug a pipe easily.

Whereas type SS 316 Forged Threaded Bushings which are used to connect two pipes of different sizes. These are used in various industries such as oil, gasoline, hydraulic machinery, fertilizing, etc. These are permanently leakage proof, easy to install and are corrosion resistant. On the other hand, Type SS 316 Forged Threaded Nipples are the short stub of pipe which has two male ends. These are mostly used in plumbing, houses, funnels, and pipes. Please feel free to contact us for any queries on SS 316 Threaded Forged Fittings.

Stainless Steel 316 Threaded Union Dealer, Stainless Steel 316Ti High Pressure Forged Fittings, ANSI B16.11 SS 316L Threaded Street Elbows, SS 316L Lateral Tee, ASME SA182M 316L Class 6000 Threaded Fittings, 316Ti SS Pipe Nipple Stockholder in India.

Stainless Steel 316/316L, 316Ti Threaded Forged Fittings Specifications

Standard specifications for stainless steel 316/316L, 316Ti Threaded Forged Fittings. If any specification is not mentioned here, you can contact us. We also manufacture and export any custom specification as per clients requirement.

Specifications ASTM A182 & ASME SA182
Dimensions ASTM, ASME, and API
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Standards ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Threaded Fittings

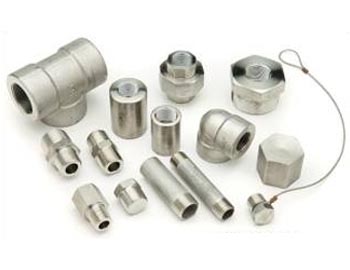

Types of SS 316/316L, 316Ti Threaded Forged Fittings

SS 316 45 Degree Threaded Elbow 316L SS 90 Degree Forged Threaded Elbow
316TI Stainless Steel 45 Degree Forged Elbow SS UNS S31603 Threaded Tee
SS WERKSTOFF NR. 1.4401 Forged Tee ASTM A182 Stainless Steel 316TI Threaded Tee
ASTM A182 316L Stainless Steel Threaded Cross SS UNS S31600 Forged Threaded Cross
SS WERKSTOFF NR. 1.4571 Threaded Cross ASME SA182 316 Stainless Steel Forged Threaded Cap
SS WERKSTOFF NR. 1.4404 Threaded Cap SS UNS S31635 Forged Threaded Cap
ASME 16.11 316L Stainless Steel Threaded Coupling SS WERKSTOFF NR. 1.4435 Threaded Coupling
SS 316L Threaded Union ASME 16.11 316TI Stainless Steel Threaded Coupling
316 SS Forged Threaded Union MSS SP-79 316 Stainless Steel Forged Union
316 Stainless Steel Threaded Bushing 316L SS Forged Threaded Bushing
SS 316Ti Threaded Bushing 316 SS Threaded Plug
SS UNS S31635 Threaded Plug ASTM A182 316L Stainless Steel Threaded Hex Plug
ASME SA182 316 Stainless Steel Forged Hexagonal Plug 316TI Stainless Steel Hexagonal Plug
SS 316 Threaded Pipe Nipple ASME 16.11 316L Stainless Steel Threaded Pipe Nipple
ASME 16.11 316TI Stainless Steel Threaded Pipe Nipple SS 316TI Hexagonal Plug

Chemical Composition of SS 316/316L, 316Ti Threaded Forged Fittings

Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2 max 1.00 max 0.045 max 0.030 max 16 – 18 2.0 – 3.0 11 – 14 67.845 min
SS 316L 0.035 max 2 max 1.00 max 0.045 max 0.030 max 16 – 18 2.0 – 3.0 10 – 14 68.89 min
SS 316TI 0.08 max 2 max 0.75 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.395 min

SS 316/316L, 316Ti Threaded Forged Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000, MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 316/316L, 316Ti Threaded Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316TI 1.4571 s31703 SUS 316Ti      320S31    08Ch17N13M2T   Z6CNDT17‐123 X6CrNiMoTi17-12-2

ASTM A182 316/316L, 316Ti Steel Threaded Forged Fittings Price List

Sunflex Metal Industries is one of the most competitive suppliers of Threaded Forged Fittings from India. Our prices for 316/316L, 316Ti Threaded Forged Fittings are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Sunflex Metal Industries maintains a stock of all standard items and can export them at the best price for 316/316L, 316Ti Threaded Forged Fittings.

Steel 316/316L, 316Ti Threaded Forged Fittings - Industries & Applications

Our Threaded Forged Fittings are used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Paper Industries

Stock Availability of Stainless Steel 316/316L, 316Ti Threaded Forged Fittings

We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for 316/316L, 316Ti Threaded Forged Fittings.
Click to send your requirement.

Why Buy SS 316/316L, 316Ti Threaded Forged Fittings from Sunflex Metal Industries

Sunflex Metal Industries is a leading stockist, distributor and supplier of 316/316L, 316Ti Threaded Forged Fittings from India. With more than three decades of experience, we understand the steel industry deeply. We have huge experience of supplying to all major industries across the world. Our team of dedicated experts with stringent quality policy ensures that we supply best-in-class products meeting and exceeding our client’s expectations. Below are a few quick points about why buying from Sunflex Metal Industries will give you an undue advantage:

  • Huge inventory of all standard sizes and grades.
  • Distributors of all reputed origins and manufacturers.
  • Strict quality control policies and highly experienced team.
  • Strong logistics & delivery channels.
  • Modern Infrastructure with huge storage capacity.
  • An ISO 9000:2015 Certified Company.
Send us your Enquiry

Prominent Countries where we Export ASTM Stainless Steel 316/316L, 316Ti Threaded Forged Fittings

Exporting Threaded Forged Fittings to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countires includes  Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy,  Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia,  South Korea, South Africa, Sri Lanka, Syria,  Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.

We are one of the top:

  • Threaded Forged Fittings exporters to Singapore
  • Threaded Forged Fittings exporters to Malaysia
  • Threaded Forged Fittings exporters to Hongkong
  • Threaded Forged Fittings exporters to Thailand
  • Threaded Forged Fittings exporters to Indonesia
  • Threaded Forged Fittings exporters to Taiwan
